Processor

Intel® Core™ i7-8565U Processor

Quad  Core Eight Threads

Base Frequency 1.8GHz, Turbo Boost to 4.6GHz

14nm Lithography

Intel KABY LAKE SOC Chipset

8MB L3 Cache

15W TDP

Instruction Set 64-bit

Multimedia Instruction Set

MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, AVX

BIOS

AMI BIOS, ACPI supported

RAM

DDR4;

2gb/4gb/6gb/8gb/16gb optional, 2*SDRAM Slot

Storage

SSD: 32GB/64GB/128GB/256GB/512GB; HDD: 160GB/250GB/320GB/500GB/640GB/1TB

Operating System

Default: Windows 10 Pro; Optional:Linux Ubuntu

Processor Graphics

Intel® HD Graphics 620

Graphics Base Frequency 300 MHz

Graphics Burst Frequency 1.05 GHz

Max Resolution (HDMI 1.4): 4096x2304@24Hz

Audio Card

ALC892 sound chip, 6-channel

Network Card

RTL 8111E 10/100/1000 BaseT LAN

Wireless

Wifi 802.11.b/g/n(150M or 300M), Dual Antennas; Bluetooth 4.0 optional

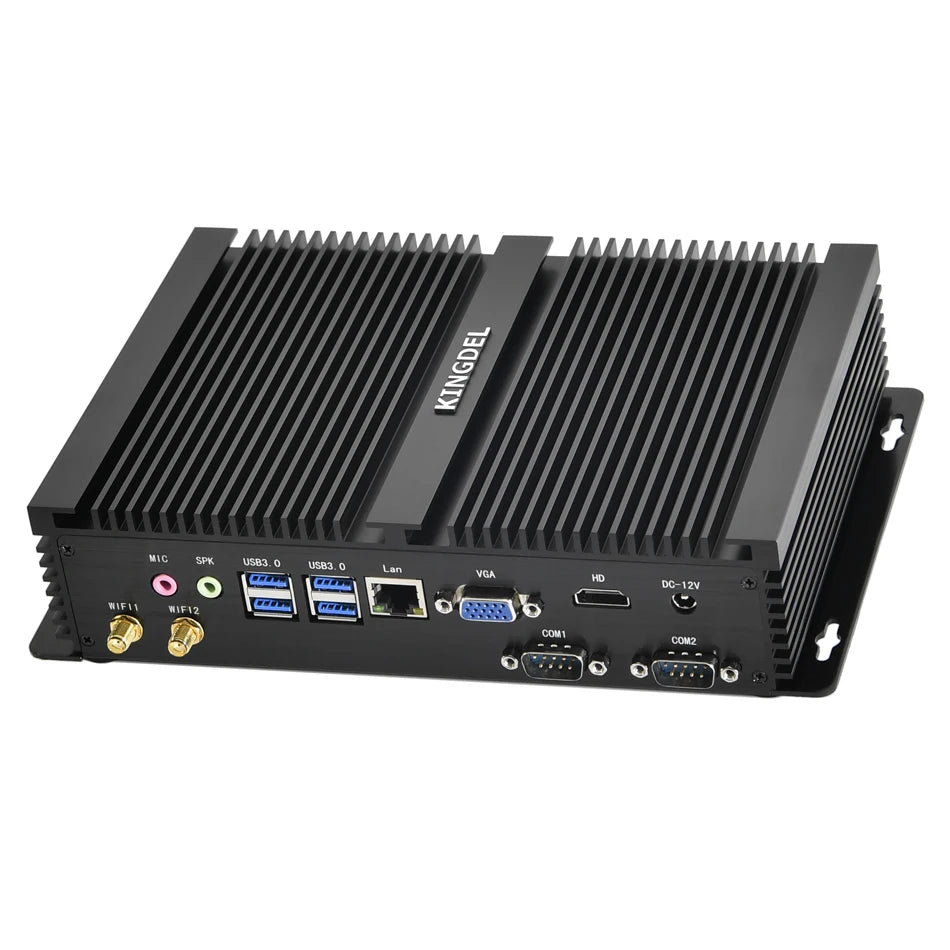

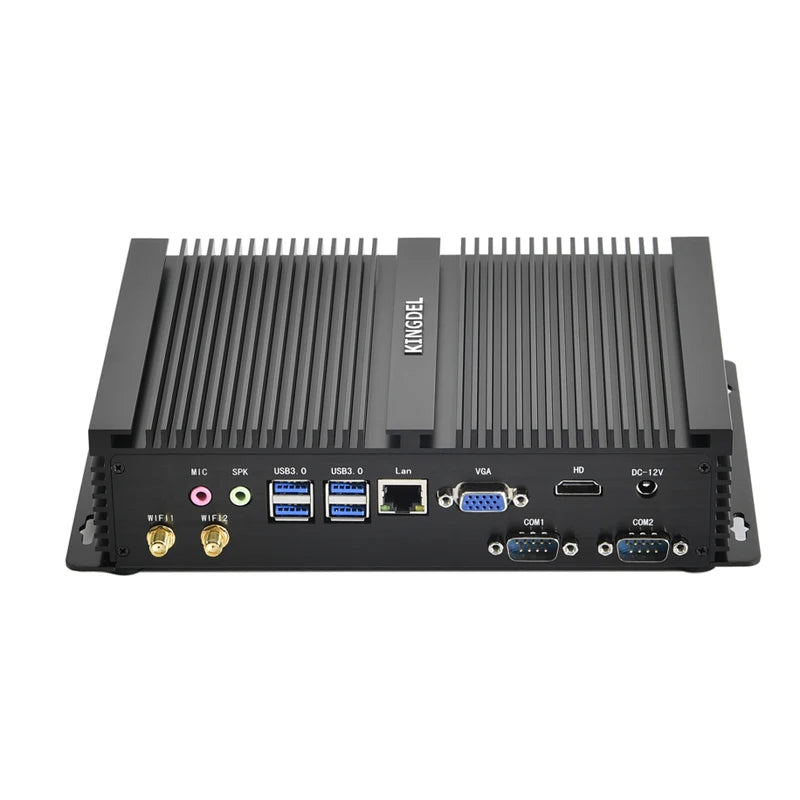

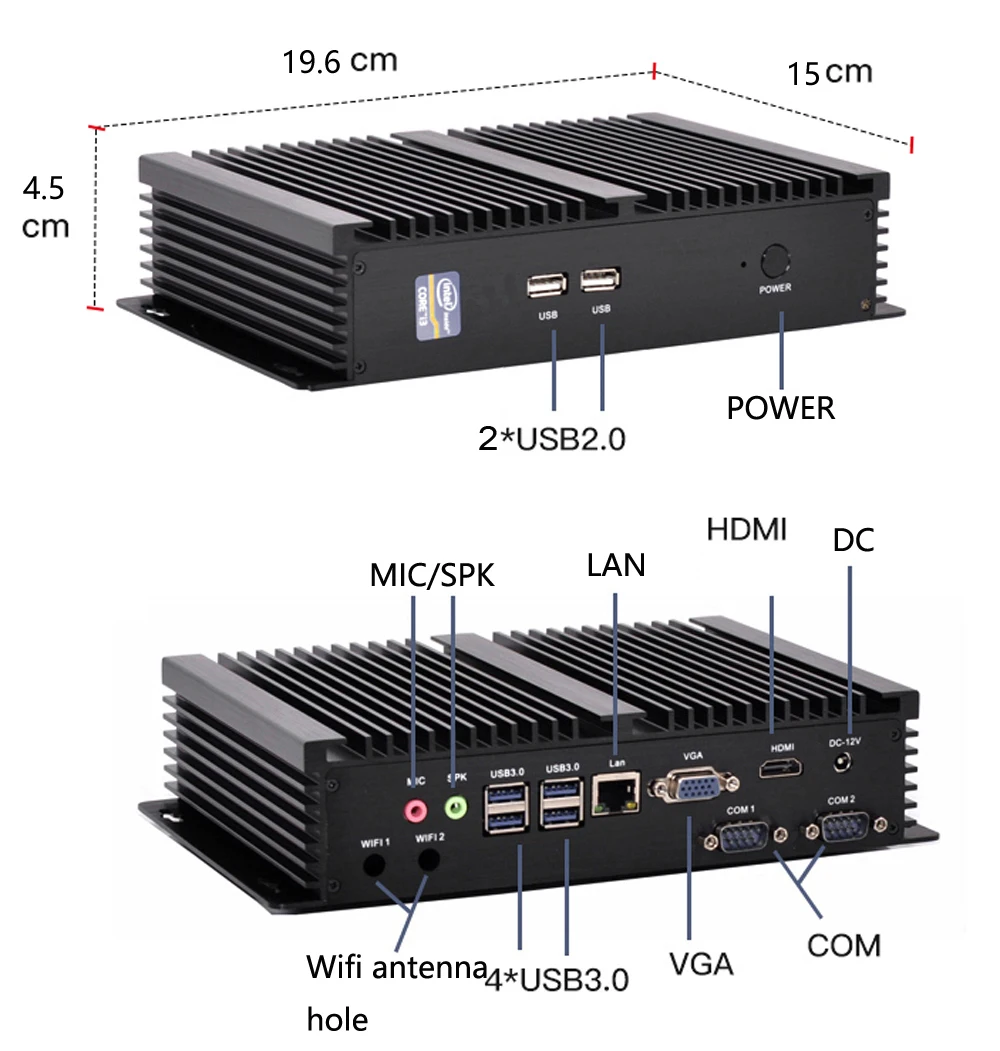

I/O Port

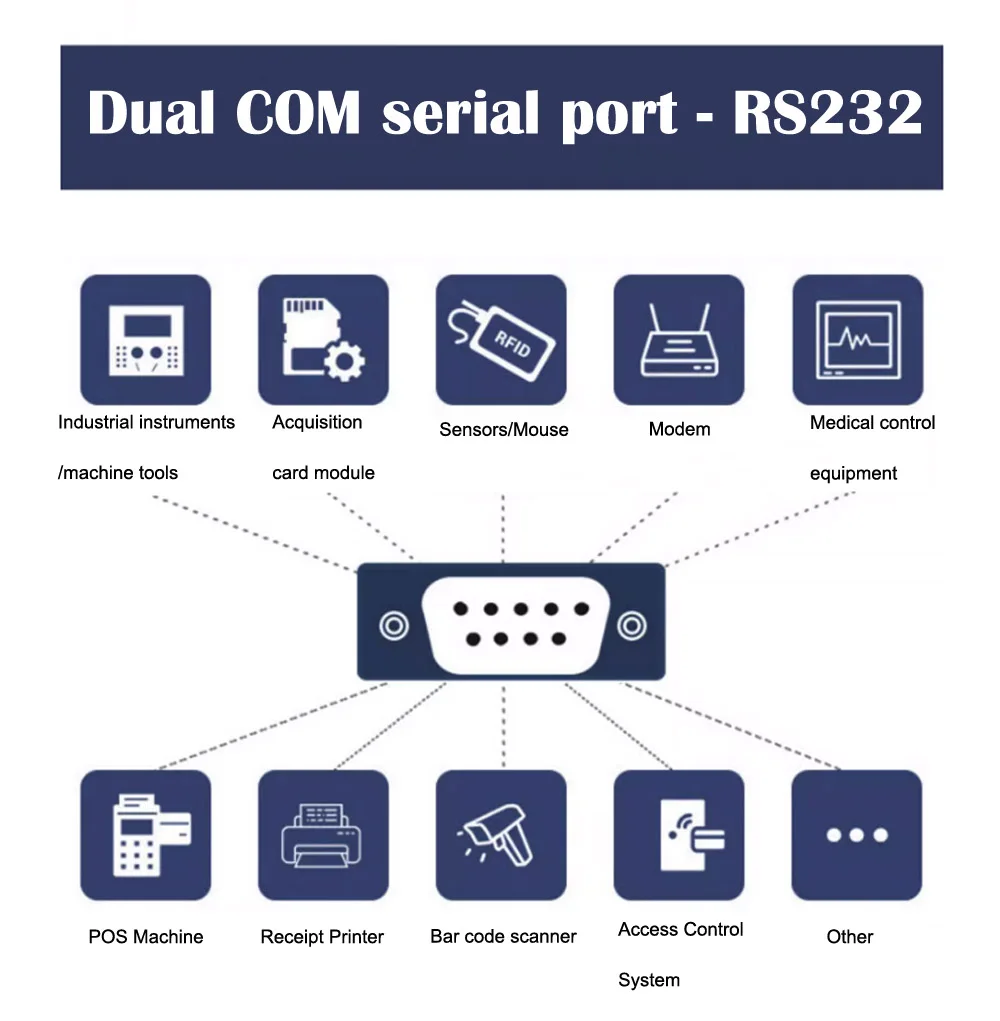

1*HDMI, 1*VGA, 1*RJ45 LAN Port, 4*USB3.0, 3*USB2.0, 1*DC IN, 1*MIC, 1*SPK,2*COM

SATA

1*MSATA3.0 Slot,1*M2 Solt, 6Gb/s; 1*SATA3 Connector, 6Gb/s

MINI PCIE

1* MINI PCIE Slot for Wifi Module

Power

In: DC100-240V AC/50-60Hz Out: DC 12V/3A

Operating Temperature

0°C~70°C (32°F~140°F)

Storage Temperature

-20°C~80°C (-68°F~176°F)

Relative Humidity

10%~90% (non-condensing)

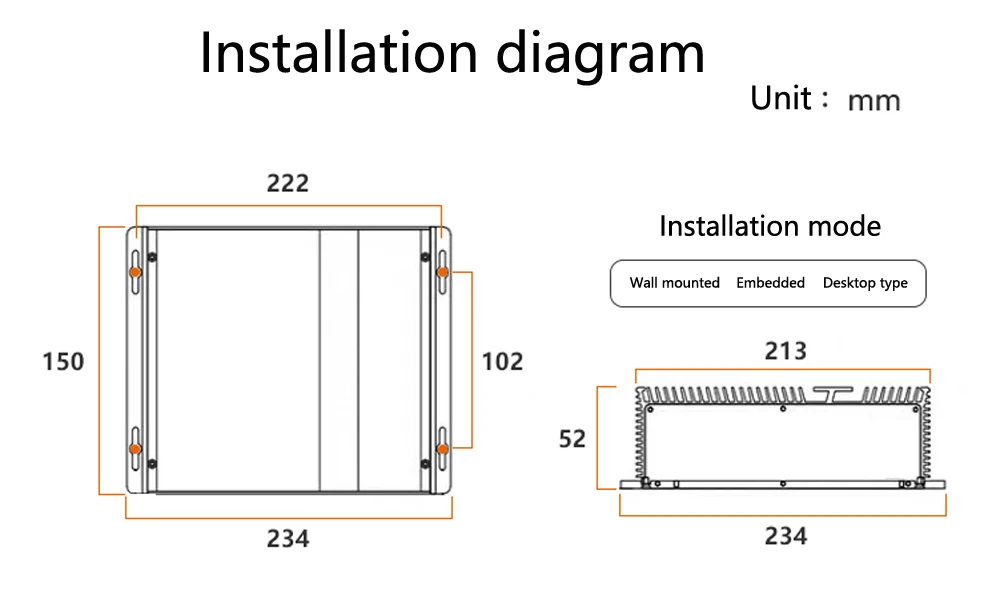

Size

220mmx 170mmx45mm

Weight

1.5~1.65kg

Package Content

Mini PC, Power adapter, Power Cable, Wifi Antennas, Stand Bracket, Screws, HDMI Cable
