Tuya WiFi Smart Switch 433MHz Wireless Remote Control 1CH AC DC7-32V Controller Smart Home Work With Alexa Google Home Alice

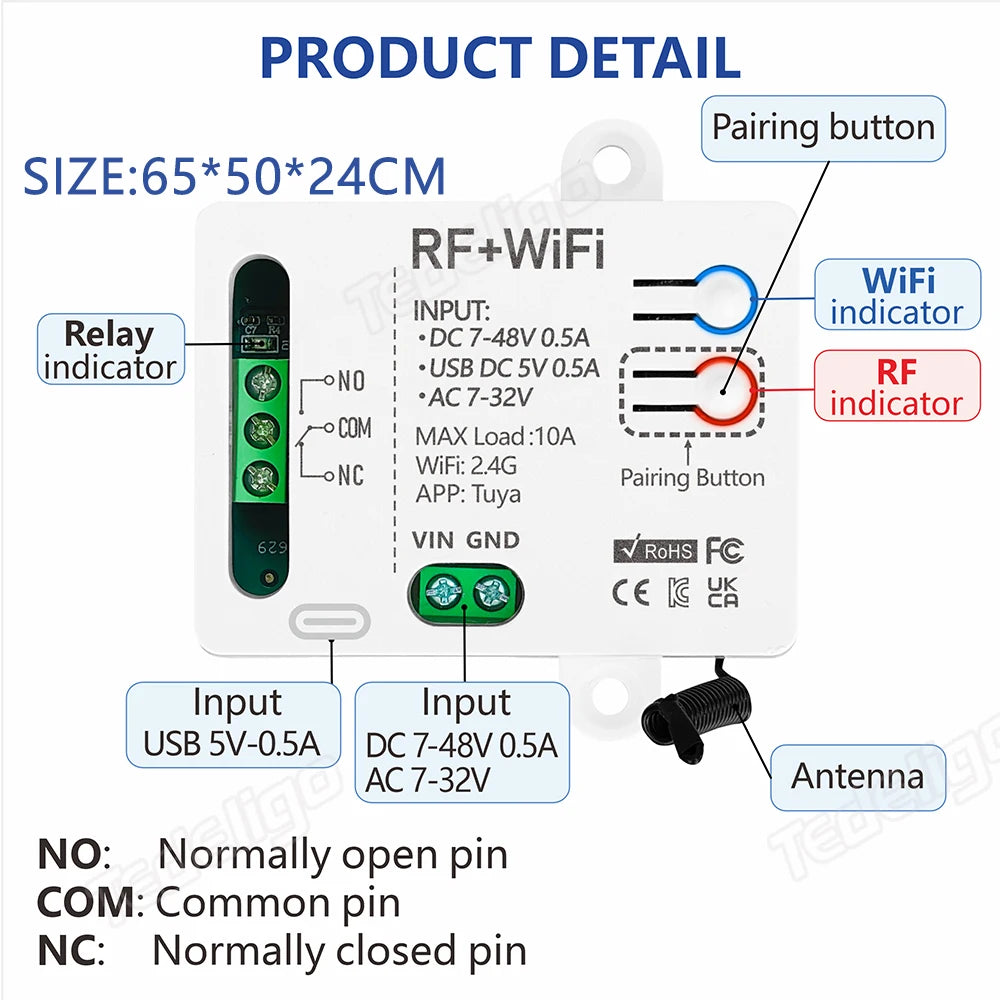

▶WIFI+RF Relay Receiver Board Parameter

Working voltage  :  DC 7-48V / AC 7-32V / USB DC 5V
Input/Output vlotage  :  1~250V
Quiescent Current  :  <5MA
Max current  :  10A
Max load:   480W
Receiver Size:65*50*24cm
RF frequency  :  433MHz

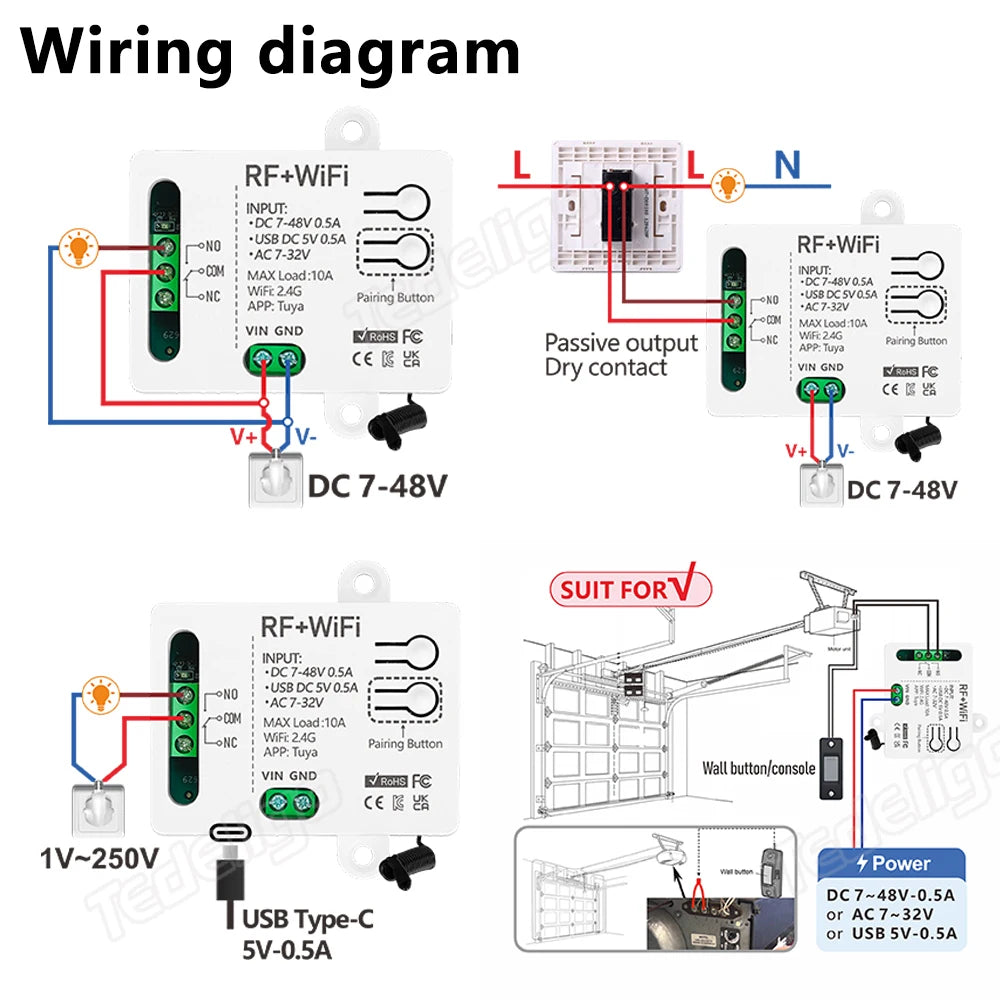

Pin  :  NO / COM / NC
Working temperature  : -30~+80 degrees
Receiving Sensitivity  :  >97dbm
Amount of storage remote controls  :  20 pieces
Support encoding  :  1527 Learning code /2262 fixed code
RF Operating mode  :  ASK superheterodyne wireless reception

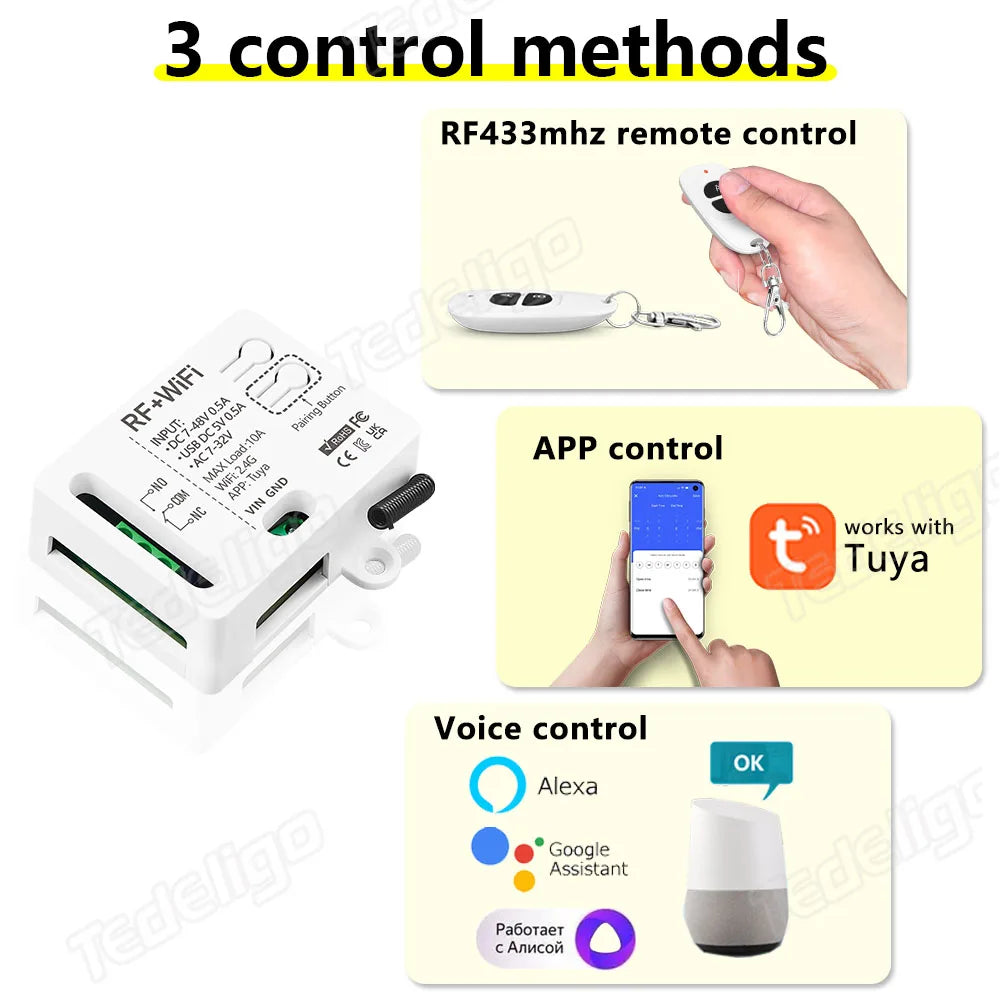

APP control:Tuya / smart life
Voice control:Alexa/Google Home/Alice

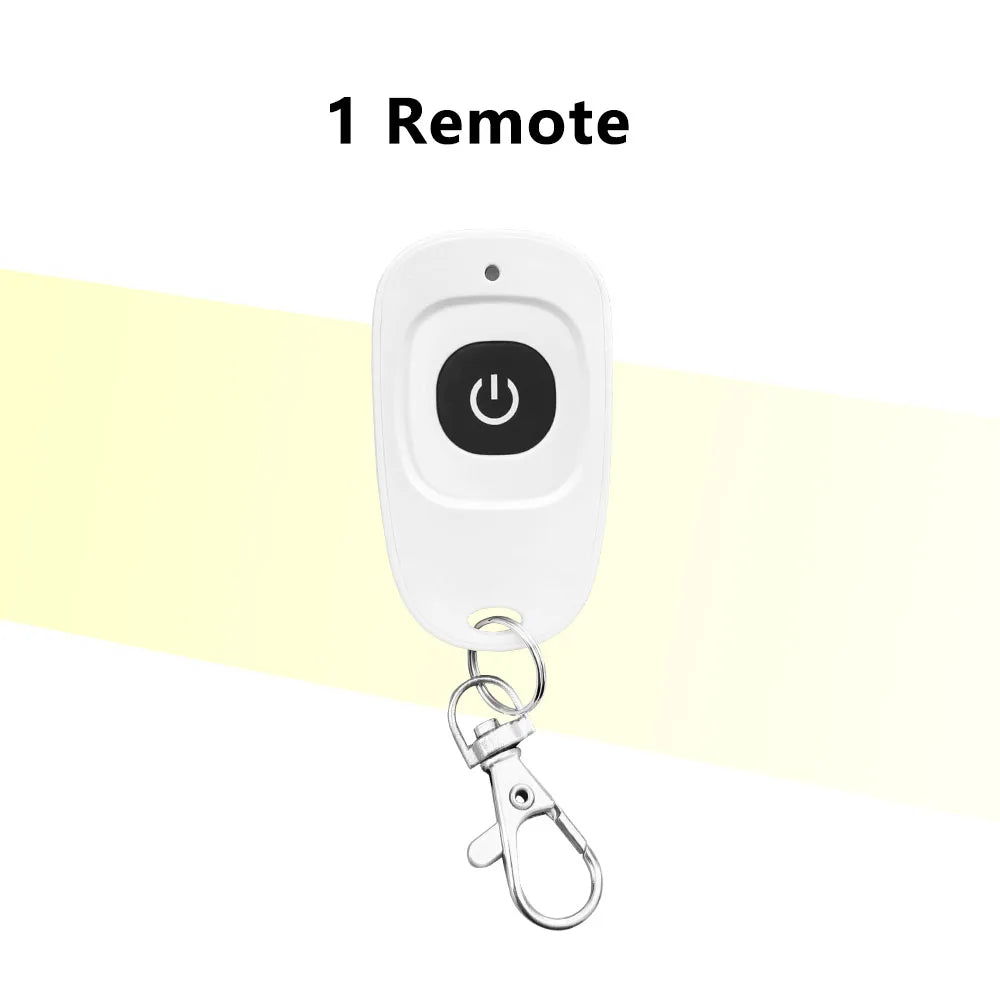

▶433MHZ Remote control parameter
RF frequency  :  433MHz
Support encoding : 1527 Leaning code
Remote distance : up to 50m (theoretical distance)
Battery :  CR2032 (included)
Size:34*59*10 mm
Modulation: ASK

▶Package include

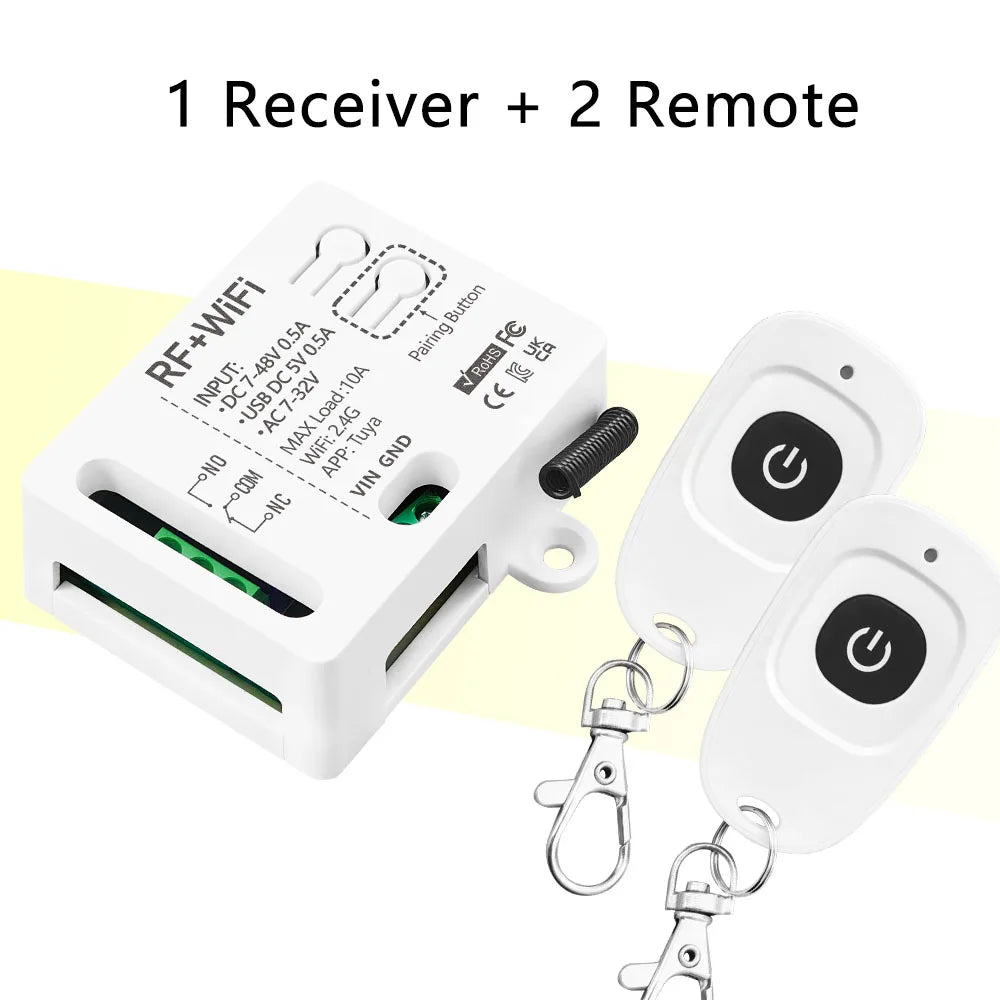

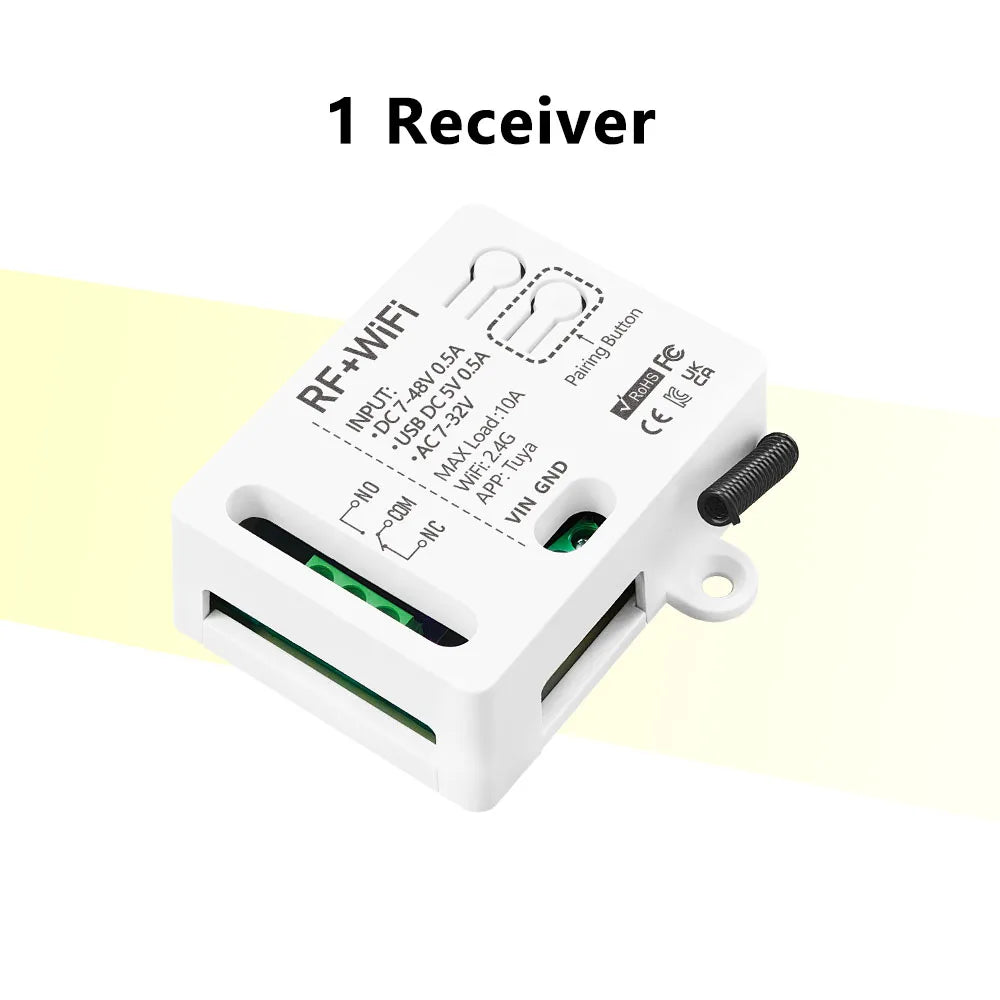

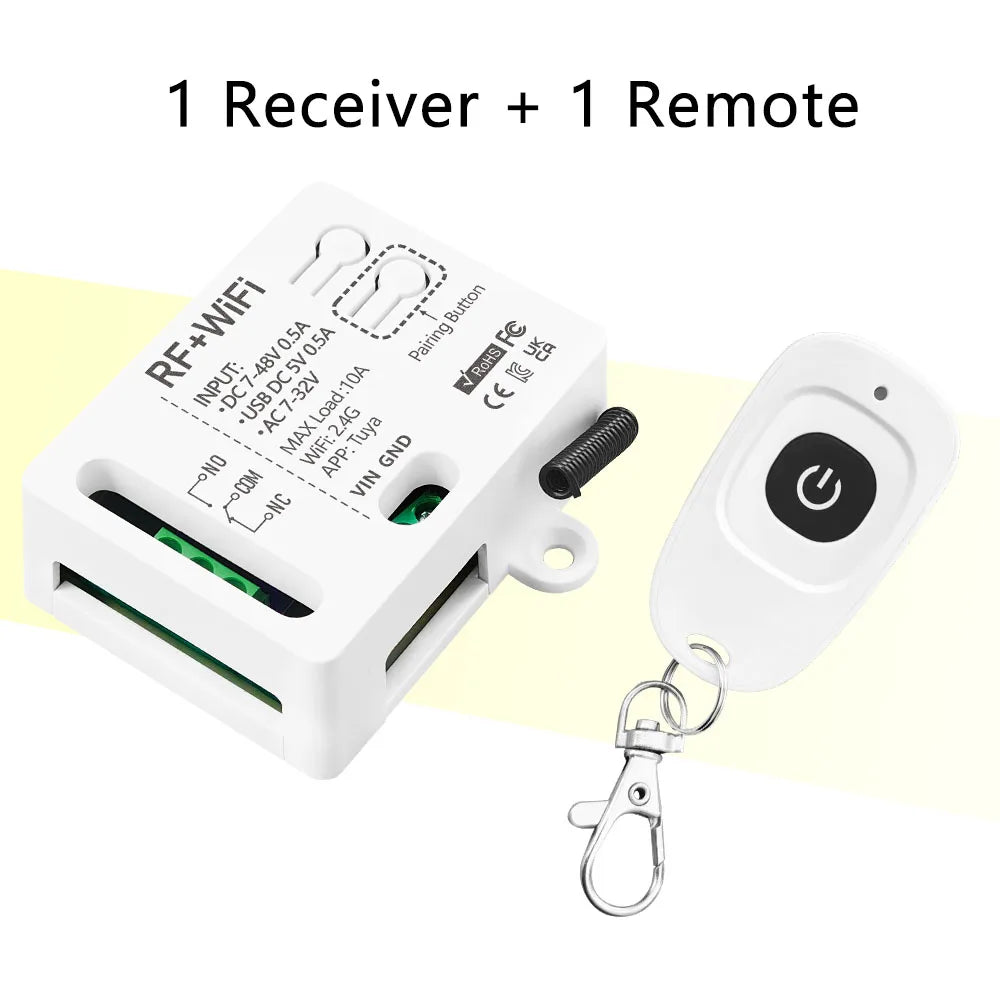

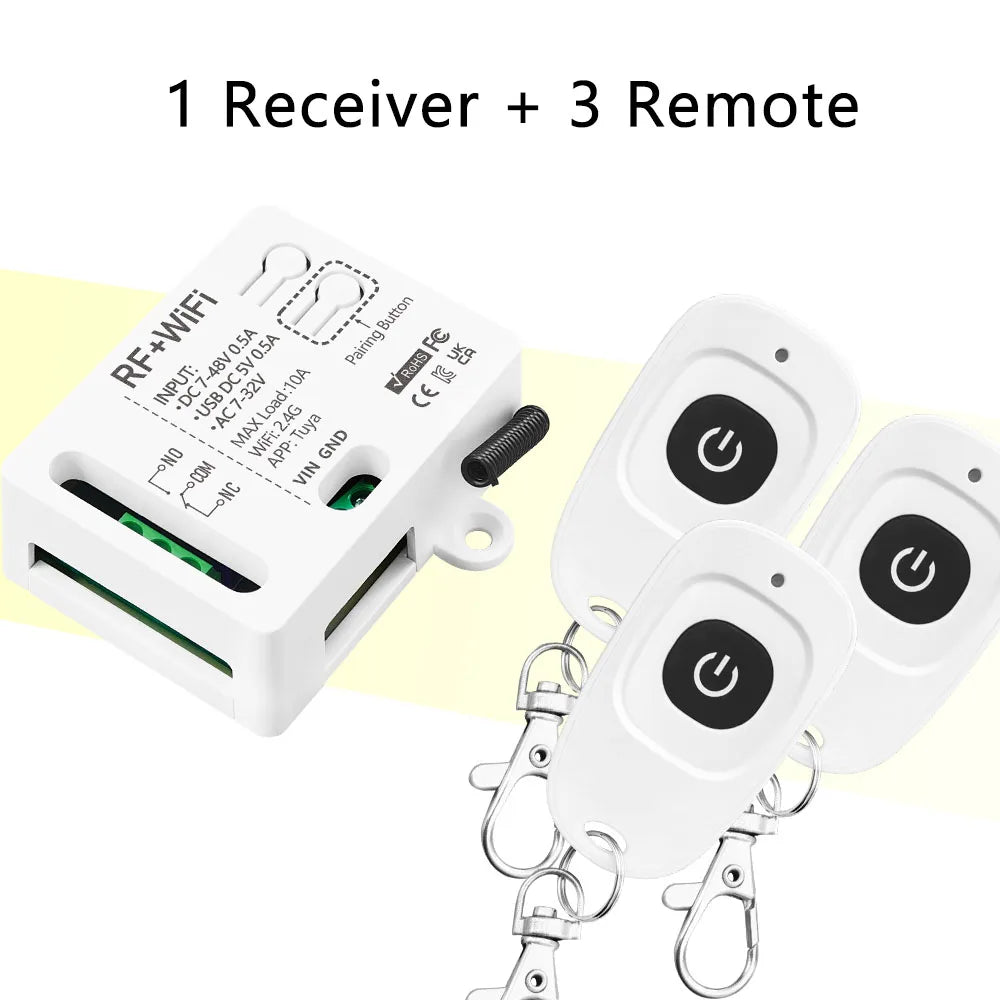

Relay Reciever Board (with shell)
Remote Control (with battery)
Product Manual

How to Set up
▶433MHZ wireless switch signals
How to get the signals
1: Press the learning button 2 times, wait 3 seconds;
2: Press and hold the remote control button for 3 seconds, success.
Then press the remote control button once, the switch will work, press the same button again, the switch will turn off.
▶How to clear the signals
press the learning button 8 times. Wait 3 seconds;

▶WIFI signals
How to connect to your smart phone:
1: Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2: Open the phone WIFI and Bluetooth;

3:Press the button on receiver until the indicator blue light flash.
4: Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.

If you have any questions, please feel free to contact us.
